Friday, May 18, 2012

How to set value of a field from sharepoint list

Download infopath form coding at here

Designing  and coding infopath


  • Article 1: How to code C-Sharp on infopath form 2010
  • Article 2: How to set the value of a Field in Infopath
  • Article 3: How to set value of a field from sharepoint list
  • Article 4: Populating InfoPath Drop Down List Box with SharePoint List Lookup Data
  • Article 5Populating InfoPath Drop Down List Box with SharePoint Fields Choice
  • Article 6: Deploy an InfoPath 2010 Form with Managed Code to a Browser Enabled Sharepoint Document Library

In article How to set the value of a Field in Infopath we learn how to code basic infopath, now we continue code to get data from sharepoint list then display to fields of infopath form

Open Infopath | Design user interface follows as
Go to File => Form Options => Programming
Form template code language: C#

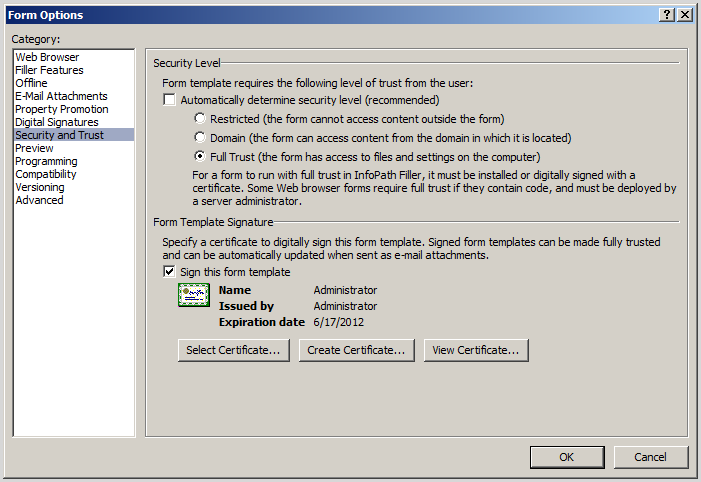

Go to File => Form Options => Security and Trust
Configure follows as:
Go to Tab Developer | click to Loading Event ribbon
Visual studio open automatically with Method FormEvents_Loading
Add reference to Microsoft.sharepoint.dll
 Using  using Microsoft.SharePoint;
Paste this segment code into Method FormEvents_Loading

using Microsoft.Office.InfoPath;
using System;
using System.Xml;
using System.Xml.XPath;
using Microsoft.SharePoint;

namespace CodeInfopathByMSTechSharing
{
    public partial class FormCode
    {
        // NOTE: The following procedure is required by Microsoft InfoPath.
        // It can be modified using Microsoft InfoPath.
        public void InternalStartup()
        {
            EventManager.FormEvents.Loading += new LoadingEventHandler(FormEvents_Loading);
        }

        public void FormEvents_Loading(object sender, LoadingEventArgs e)
        {
            string title = "";
            string startDate = "";
            string complete = "";

            SPSite spSite = new SPSite("http://win-67038mbkel7");
            using (SPWeb spWeb = spSite.OpenWeb())
            {
                SPList spList = spWeb.Lists["Tasks"];
                //SPList spList = SPContext.Current.List;
                //int id = Convert.ToInt32(System.Web.HttpContext.Current.Request.QueryString["ID"]);
                SPQuery spQuery = new SPQuery();
                SPListItemCollection collection = spList.GetItems(spQuery);
                SPListItem spListItem = collection.GetItemById(3);
                title = spListItem["Title"].ToString();
                startDate = spListItem["StartDate"].ToString();
                complete = spListItem["PercentComplete"].ToString();
                // how to publish infopath from code to sharepoint
                //http://platinumdogs.me/2007/12/17/deploy-an-infopath-2007-form-with-managed-code-to-a-browser-enabled-sharepoint-document-library/
            }
            XPathNavigator xPathNavigatorTitle = this.MainDataSource.CreateNavigator()
            .SelectSingleNode("/my:myFields/my:txtTitle", this.NamespaceManager);
            xPathNavigatorTitle.SetValue(title);
            XPathNavigator xPathNavigatorDueDate = this.MainDataSource.CreateNavigator()
            .SelectSingleNode("/my:myFields/my:txtStartDate", this.NamespaceManager);
            xPathNavigatorDueDate.SetValue(startDate);
            XPathNavigator xPathNavigatorComplete = this.MainDataSource.CreateNavigator()
            .SelectSingleNode("/my:myFields/my:txtPercentComplete", this.NamespaceManager);
            xPathNavigatorComplete.SetValue(complete);
        }
    }
}

Deploy an InfoPath 2010 Form with Managed Code to a Browser Enabled Sharepoint Document Library

Go to File => Publish => Click to Sharepoint Server
Input URL to sharepoint site then click next
Click Next
Click Browse… (Publish infopath form with administrator permission)
Save infopath form
Add Fields


Click Publish

Upload the template

Go to Central Admin => General Application Settings => Infopath Form Services => click to Manage form templates

Click to Upload form template

Browse to infopath form which publish in your machine

Click to Upload

Upload successful

Activate the form template on a Site Collection

Back to Manage form template screen | click to your infopath form | Active to a site collection

Choose your site collection

Associate the Form Template with a Form Library

Go to your site collection | create a new Document Library | input name: My Documents

On My Documents  =>  Document Library Settings => Advanced Settings => at Allow management of content types? : Yes

Click to “Add from existing site content types” link

Add content type (Infopath content type) to your library

Infopath content type is added successful

Go to Tasks list | try add new item

Go back My Documents Library | Tab Documents | New Document | CodeInfopathByMSTechSharingPublish

You see result at (Data from Tasks List is got and set to control infopath)

You can save this form
Result as

How to set the value of a Field in Infopath

How to set the value of a Field in Infopath

  • Article 1: How to code C-Sharp on infopath form 2010
  • Article 2: How to set the value of a Field in Infopath
  • Article 3: How to set value of a field from sharepoint list
  • Article 4: Populating InfoPath Drop Down List Box with SharePoint List Lookup Data
  • Article 5Populating InfoPath Drop Down List Box with SharePoint Fields Choice
  • Article 6: Deploy an InfoPath 2010 Form with Managed Code to a Browser Enabled Sharepoint Document Library


Download infopath form coding at here
Open infopath | Design UI follows as
Right click to button | Edit Form Code…
Error appear
How to solve

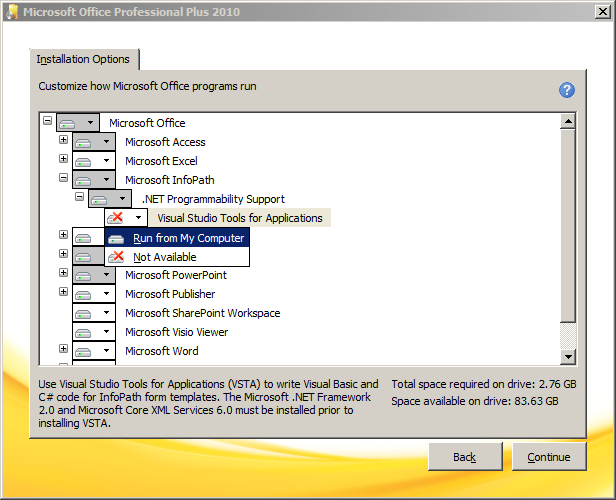

Go to control panel | Uninstall program | right click to Microsoft office | change | choose Add or Remove Features
In Microsoft Infopath | .Net Programmability Support | at visual studio tools for applications: Run from my computer
Waiting configuration progress
Go back to infopath form | File | Form Options

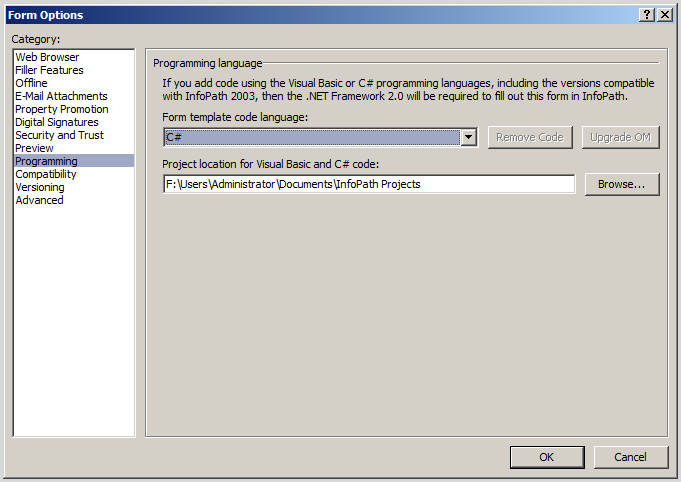

At  Programming
Form template code language: C#

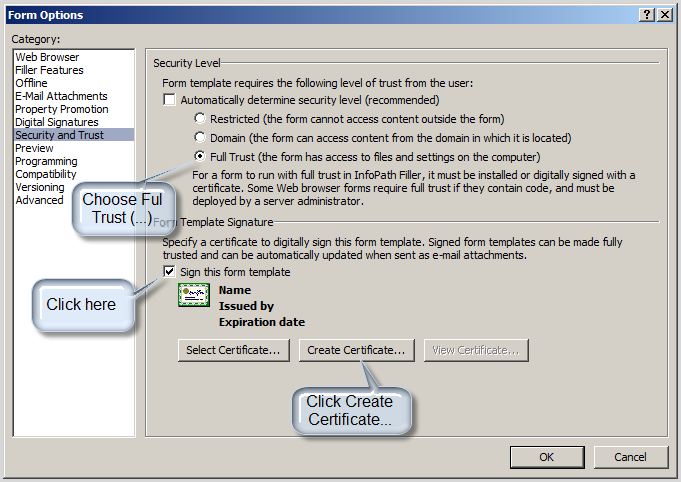

At Security and Trust
Configure follows as:

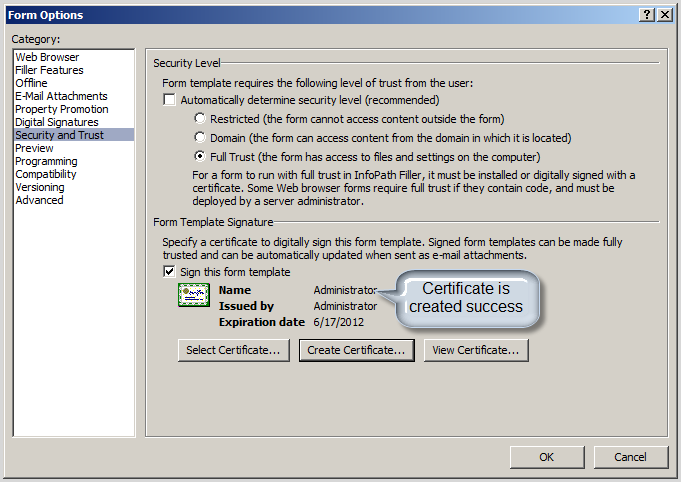

After click Create Certificate … result as certificate is created with administrator

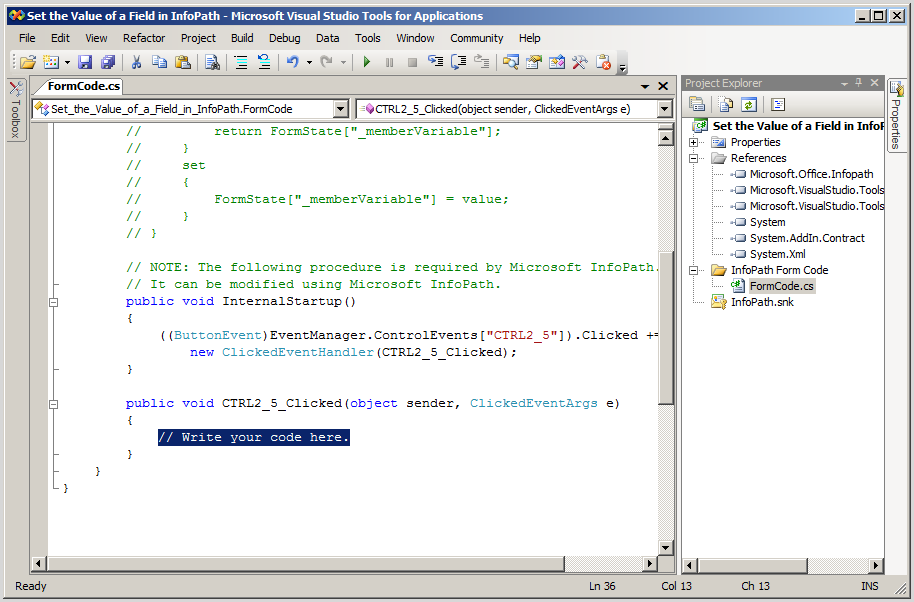

Right click to button | Edit Form Code… again, you will see Visual studio open automatically with Method ButtonID_Clicked
Paste this segment code into Method ButtonID_Clicked

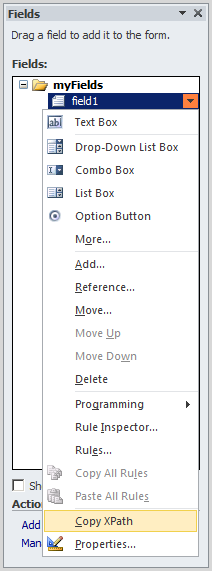

Go back to infopath form | right click to field1 | Copy XPath

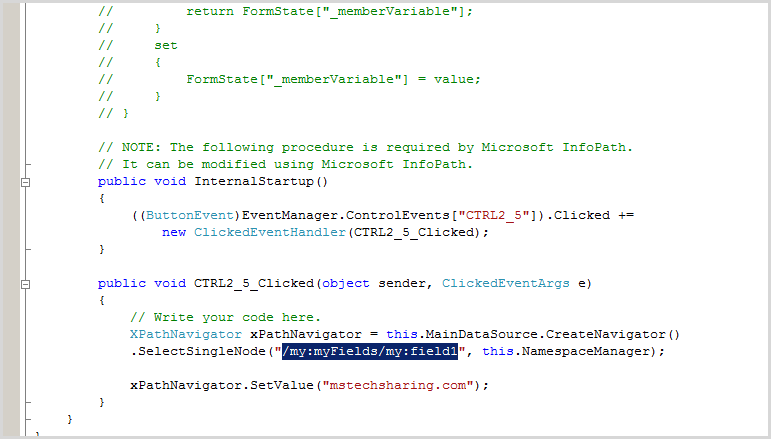

Go back to visual studio then paste “/my:YourTextBox”

public void CTRL2_5_Clicked(object sender, ClickedEventArgs e)
        {
            // Write your code here.
            XPathNavigator xPathNavigator = this.MainDataSource.CreateNavigator()
            .SelectSingleNode("/my:myFields/my:field1", this.NamespaceManager);

            xPathNavigator.SetValue("mstechsharing.com");
        }

Go back to Infopath form | Click F5 | click to button | value will be set to TextBox
